swg-schraubenwerk

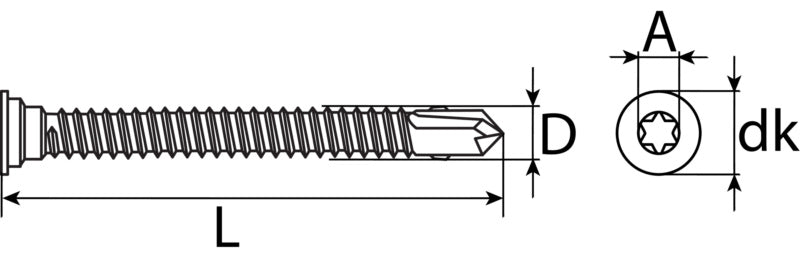

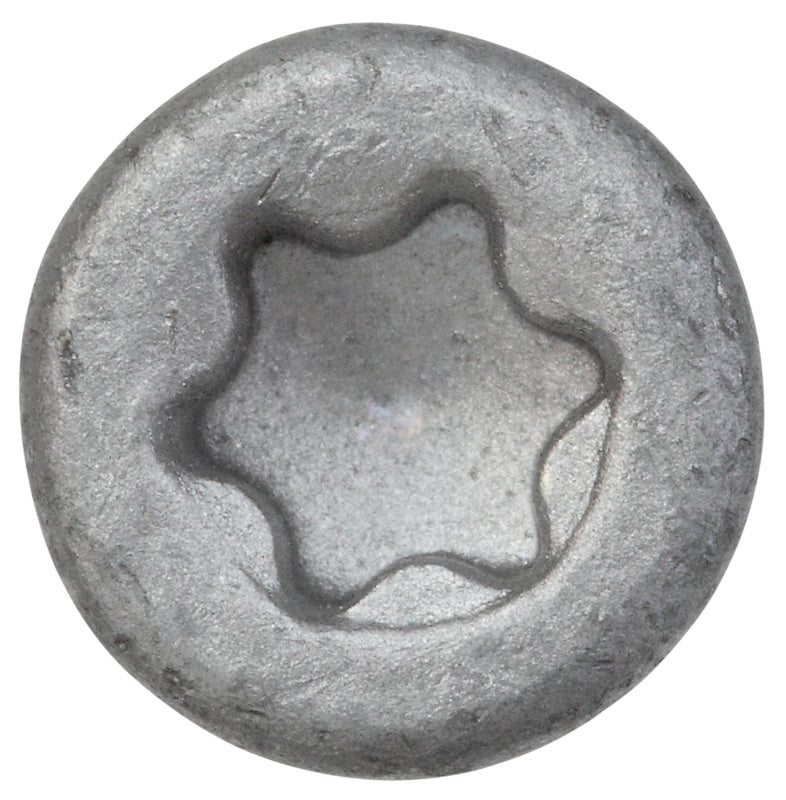

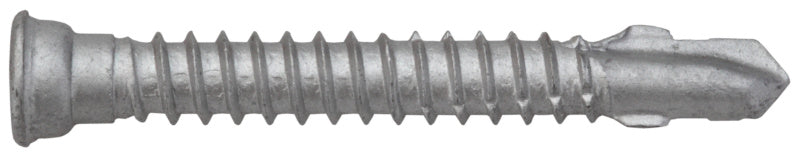

Decking screw, A4 bimetal stainless steel with bit
- Material: Stainless steel A4
- Surface: Flake zinc silver
- Nominal diameter: 5.5 mm
- Nominal length: 55 mm
- Thread design: Full thread
- Head type: Step head
- Drive type: Internal hexalobular
- Internal drive: TX25
- Head diameter max.: 8 mm
- Head height max.: 5.8 mm
- Length notch tip: 11 mm
- Pitch: 1.85 mm
- Max. penetration depth: 2.2 mm
- Breaking torque: 7.5 Nm
- Drill tip length: 11 mm
- Drill tip diameter: 4.8 mm
- Number of bits: 1 PCS
Exclusively for business customers
- Price display and ordering for customers after registration
- Register now and access more than 50,000 products
Variants
Application
Technical data
Documents
- Material: Stainless steel A4
- Surface: Flake zinc silver
- Nominal diameter: 5.5 mm
- Nominal length: 55 mm
- Thread design: Full thread
- Head type: Step head
- Drive type: Internal hexalobular
- Internal drive: TX25
- Head diameter max.: 8 mm
- Head height max.: 5.8 mm
- Length notch tip: 11 mm
- Pitch: 1.85 mm
- Max. penetration depth: 2.2 mm
- Breaking torque: 7.5 Nm
- Drill tip length: 11 mm
- Drill tip diameter: 4.8 mm
- Number of bits: 1 PCS
