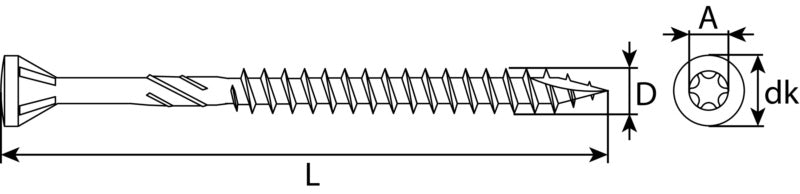

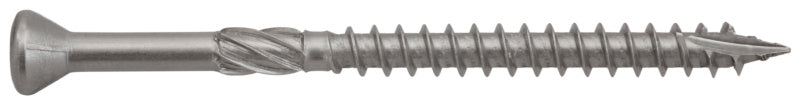

Decking screw, A2 stainless steel, TX with bit
- Material: Stainless steel A2
- Diameter: 5 mm
- Thread design: Partial thread
- Head type: Countersunk milling head

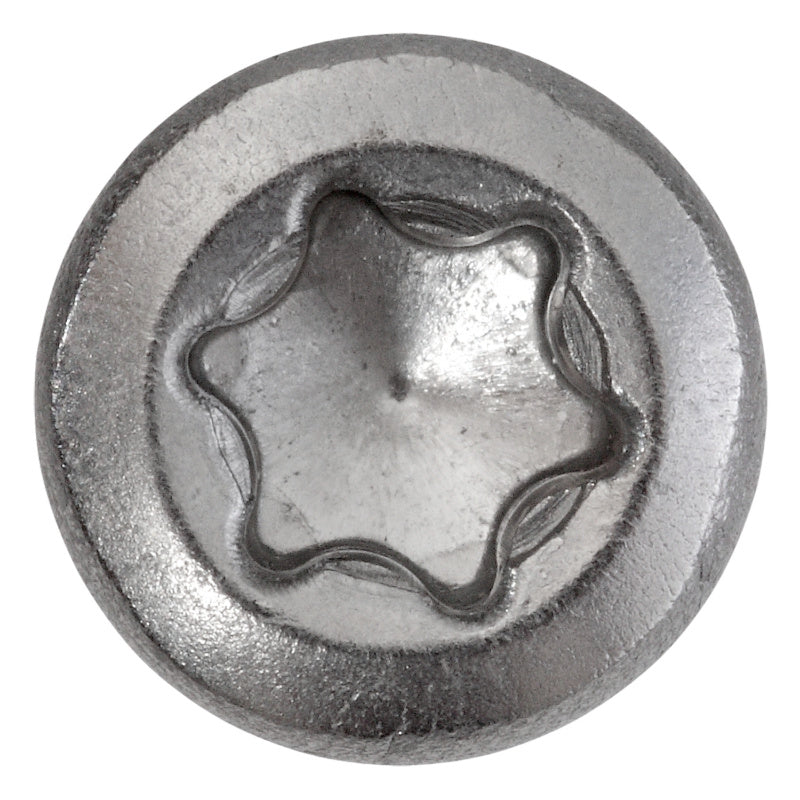

- Internal drive: TX25
- Max. thread diameter (d thr): 5.1 mm
- Head diameter max.: 7.8 mm
- Head height max.: 4.9 mm
- Length notch tip: 11 mm
- Pitch: 2.3 mm
- Breaking torque: 4.2 Nm
- Bending angle: 45 Degree
- Number of bits: 1 PCS
Exclusively for business customers
- Price display and ordering for customers after registration
- Register now and access more than 50,000 products
Variants
Application
Technical data
Documents
- Material: Stainless steel A2
- Diameter: 5 mm
- Thread design: Partial thread
- Head type: Countersunk milling head
- Internal drive: TX25
- Max. thread diameter (d thr): 5.1 mm
- Head diameter max.: 7.8 mm
- Head height max.: 4.9 mm
- Length notch tip: 11 mm
- Pitch: 2.3 mm
- Breaking torque: 4.2 Nm
- Bending angle: 45 Degree
- Number of bits: 1 PCS
