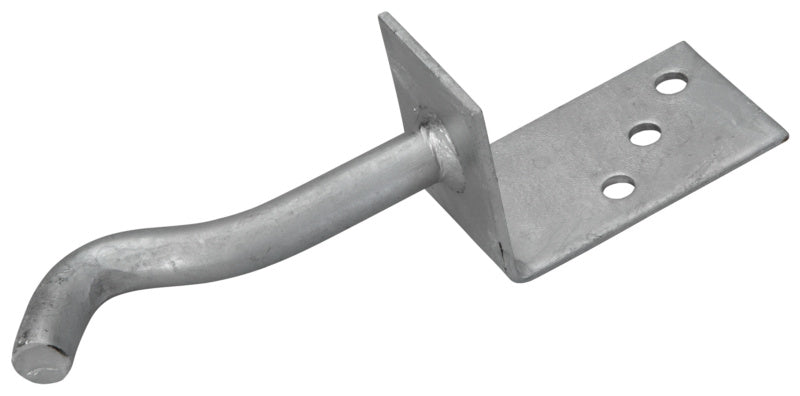

Post anchor, L-shape, with spike, depressed centre

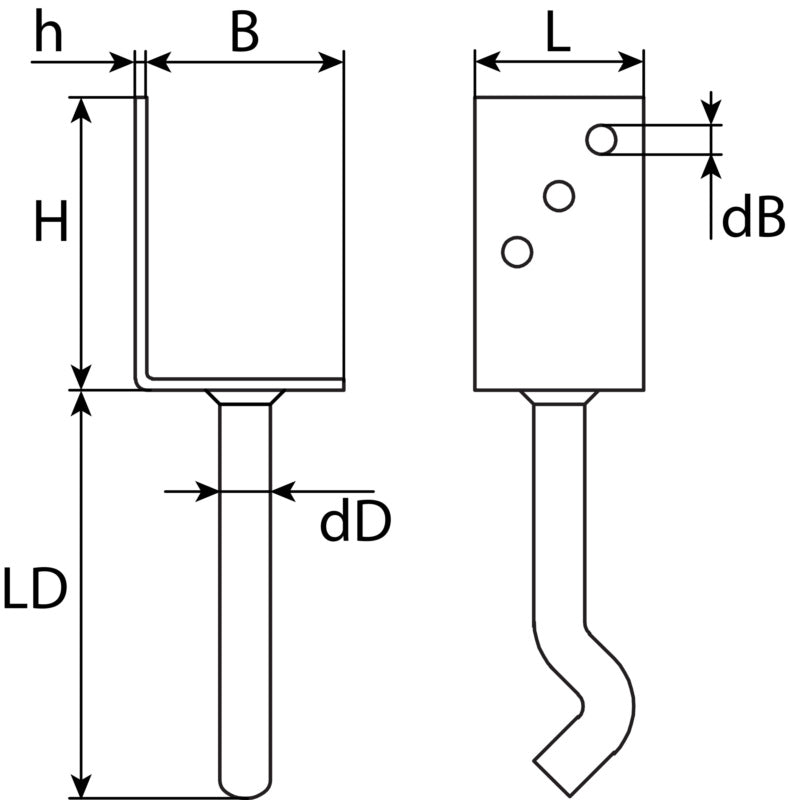

- Width of column shoe: 60 mm
- Height of column shoe: 100 mm
- Depth of column shoe: 70 mm
- Material thickness of column shoe: 4 mm
- Anchor rod height: 145 mm
- Material thickness of anchor rod: 18 mm
- Diameter of hole: 10.5 mm
- Material: Steel
- Surface: Hot dip galvanized
- Width Package: 70.00
- Height Package: 55.00
- Depth Pagage: 245.00
- Cross Weight: 663.00
Exclusively for business customers
- Price display and ordering for customers after registration
- Register now and access more than 50,000 products
Variants
Description
Application
Technical data
Documents
The L-shape post anchor has pre-punched installation holes and an offset spike for casting in concrete to ensure greater stability.
The hot-dip galvanising provides good corrosion protection.
The hot-dip galvanising provides good corrosion protection.
- Width of column shoe: 60 mm
- Height of column shoe: 100 mm
- Depth of column shoe: 70 mm
- Material thickness of column shoe: 4 mm
- Anchor rod height: 145 mm
- Material thickness of anchor rod: 18 mm
- Diameter of hole: 10.5 mm
- Material: Steel
- Surface: Hot dip galvanized
- Width Package: 70.00
- Height Package: 55.00
- Depth Pagage: 245.00
- Cross Weight: 663.00
