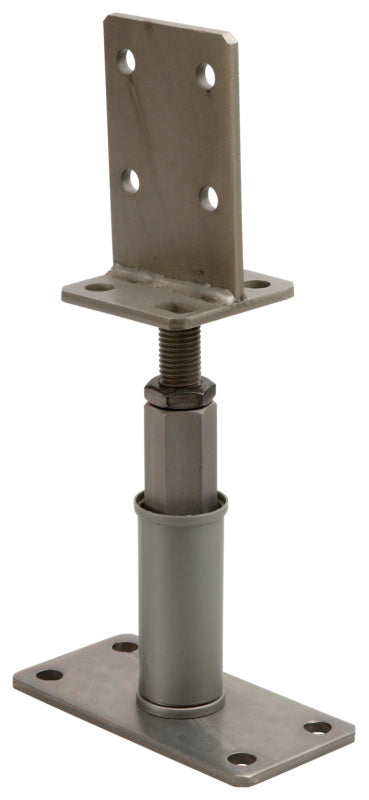

Height-adjustable post anchor with strut according to ETA-13/0026
- Min./max. adjustment range: 135-200 mm
- Width: 80 mm
- Floor plate width: 80 mm
- Floor plate length: 160 mm
- Height: 120 mm
- Length: 80 mm
- Number of bolt holes: 4 PCS
- Mounting hole diameter: 11 mm
- Material thickness: 6 mm
- Material: Steel
- Surface: Zinc iron
- Max. adjustment range: 200 mm
- Min. adjustment range: 135 mm
- Approval: ETA-13/0026
- Width Package: 0.00
- Height Package: 0.00
- Depth Pagage: 0.00
- Cross Weight: 1900.00
Exclusively for business customers
- Price display and ordering for customers after registration
- Register now and access more than 50,000 products
Variants
Description
Application
Technical data
Documents
The column bases are fastened to concrete with bolts through the base plate.
- Min./max. adjustment range: 135-200 mm
- Width: 80 mm
- Floor plate width: 80 mm
- Floor plate length: 160 mm
- Height: 120 mm
- Length: 80 mm
- Number of bolt holes: 4 PCS
- Mounting hole diameter: 11 mm
- Material thickness: 6 mm
- Material: Steel
- Surface: Zinc iron
- Max. adjustment range: 200 mm
- Min. adjustment range: 135 mm
- Approval: ETA-13/0026
- Width Package: 0.00
- Height Package: 0.00
- Depth Pagage: 0.00
- Cross Weight: 1900.00
