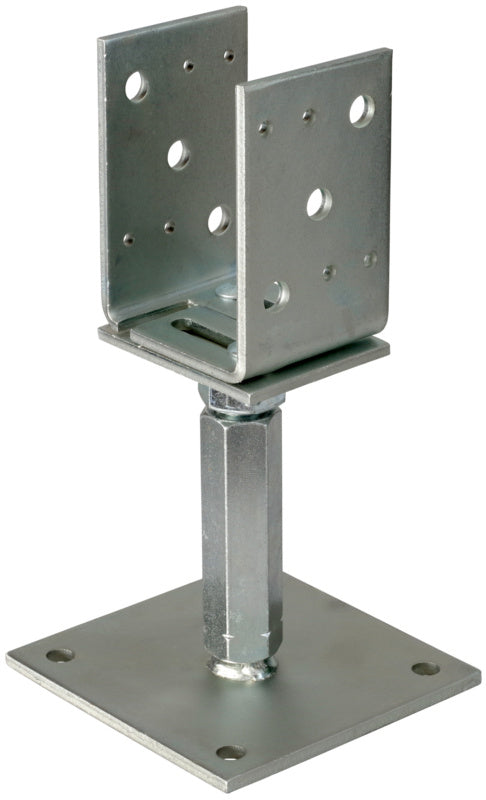

Post anchor, height- and side-adjustable

swg-schraubenwerk

Post anchor, height- and side-adjustable

  • Min./max. adjustment range: 65-155 mm
  • Width of fastening strap: 35 mm
  • Floor plate width: 130 mm
  • Floor plate length: 130 mm
  • Fork height: 115 mm
  • Fork depth: 70 mm
  • Fork width (inner): 85 mm
  • Min./max. height: 120-200 mm
  • Bolt hole diameter: 11 mm
  • Width of adjustment hole: 8.5 mm
  • Material: Steel
  • Surface: Zinc plated
  • Fixing hole diameter of floor plate: 11 mm
  • Diameter mounting screws: 8 mm
  • Diameter threaded rod: M20
  • Height Spacer: 100 mm
  • Height of the nut: 19 mm
  • Material thickness of floor plate: 6 mm
  • Material thickness of column shoe: 5 mm
  • Nail-hole diameter: 5 mm
  • Diameter of hole: 8 mm
  • Screw length: 20 mm
  • Width Package: 130.00
  • Height Package: 250.00
  • Depth Pagage: 130.00
  • Cross Weight: 2230.00
Go to product variants

Exclusively for business customers

  • Price display and ordering for customers after registration
  • Register now and access more than 50,000 products
Log in/Register
make contact
Call customer service at +49 7942 100-0
Variants
Description
Application
Technical data
Documents
The column bases are fastened to concrete with bolts through the base plate.
  • Min./max. adjustment range: 65-155 mm
  • Width of fastening strap: 35 mm
  • Floor plate width: 130 mm
  • Floor plate length: 130 mm
  • Fork height: 115 mm
  • Fork depth: 70 mm
  • Fork width (inner): 85 mm
  • Min./max. height: 120-200 mm
  • Bolt hole diameter: 11 mm
  • Width of adjustment hole: 8.5 mm
  • Material: Steel
  • Surface: Zinc plated
  • Fixing hole diameter of floor plate: 11 mm
  • Diameter mounting screws: 8 mm
  • Diameter threaded rod: M20
  • Height Spacer: 100 mm
  • Height of the nut: 19 mm
  • Material thickness of floor plate: 6 mm
  • Material thickness of column shoe: 5 mm
  • Nail-hole diameter: 5 mm
  • Diameter of hole: 8 mm
  • Screw length: 20 mm
  • Width Package: 130.00
  • Height Package: 250.00
  • Depth Pagage: 130.00
  • Cross Weight: 2230.00
