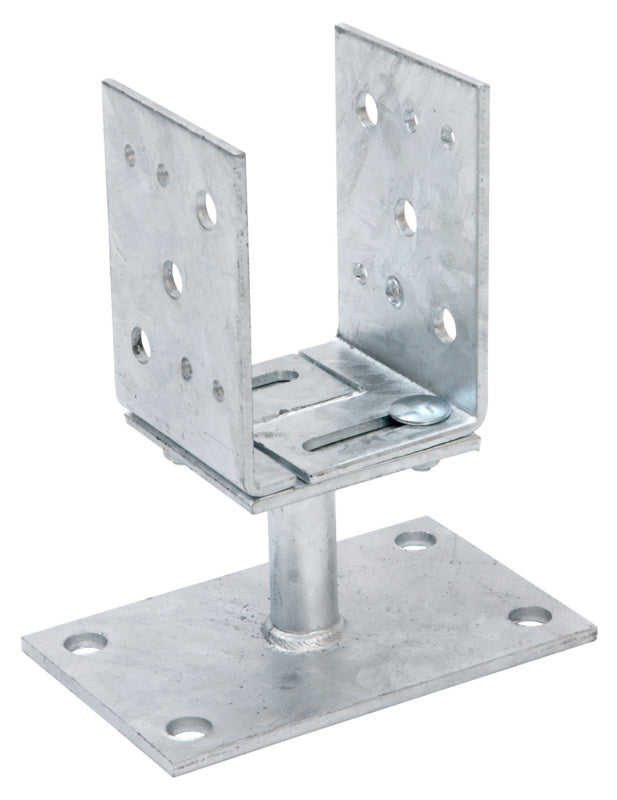

Screw-in post anchor, side-adjustable according to ETA-13/0026
- Min./max. adjustment range: 80-160 mm
- Width of fastening strap: 51 mm
- Floor plate width: 100 mm
- Floor plate length: 150 mm
- Height: 116 mm
- Fork height: 112 mm
- Material thickness: 4 mm
- Material thickness of floor plate: 5 mm
- Nail-hole diameter: 6.5 mm
- Material: Steel
- Surface: Hot dip galvanized
- Screw length: 20 mm
- Length of adjustment hole: 51 mm
- Fork width (inner): 80 mm
- Fork thickness: 4 mm
- Fork depth: 80 mm
- Fixing hole diameter of floor plate: 13 mm
- Diameter mounting screws: 8 mm
- Bolt hole diameter: 13 mm
- Width of adjustment hole: 8.5 mm
- Width Package: 0.00
- Height Package: 0.00
- Depth Pagage: 0.00
- Cross Weight: 2126.00
Exclusively for business customers
- Price display and ordering for customers after registration
- Register now and access more than 50,000 products
Variants
Description
Application
Technical data
Documents
The column shoes are fastened to concrete with bolts through the base plate.
- Min./max. adjustment range: 80-160 mm
- Width of fastening strap: 51 mm
- Floor plate width: 100 mm
- Floor plate length: 150 mm
- Height: 116 mm
- Fork height: 112 mm
- Material thickness: 4 mm
- Material thickness of floor plate: 5 mm
- Nail-hole diameter: 6.5 mm
- Material: Steel
- Surface: Hot dip galvanized
- Screw length: 20 mm
- Length of adjustment hole: 51 mm
- Fork width (inner): 80 mm
- Fork thickness: 4 mm
- Fork depth: 80 mm
- Fixing hole diameter of floor plate: 13 mm
- Diameter mounting screws: 8 mm
- Bolt hole diameter: 13 mm
- Width of adjustment hole: 8.5 mm
- Width Package: 0.00
- Height Package: 0.00
- Depth Pagage: 0.00
- Cross Weight: 2126.00
