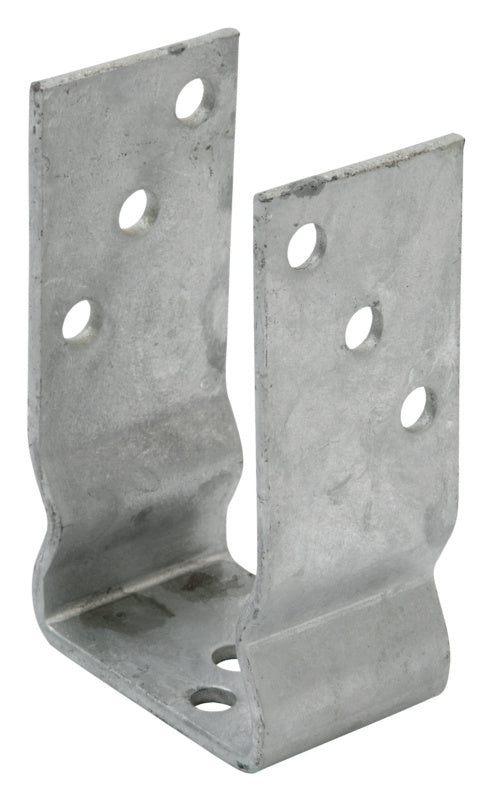

Screw-in post anchor with bead
- Width: 60 mm
- Height: 150 mm
- Plate thickness: 5 mm
- Mounting hole diameter: 10.5 mm
- Diameter of hole: 12.5 mm
- Elongated hole width: 6.25 mm
- Elongated hole length: 25.5 mm
- Material: Steel
- Surface: Hot dip galvanized
Exclusively for business customers
- Price display and ordering for customers after registration
- Register now and access more than 50,000 products
Variants
Description
Application
Technical data
Documents
The post anchor with bead for screw mounting is suitable for square posts. It is not cast in concrete as usual, but instead can be screw-mounted or anchored on the base material, which saves time when putting up a wooden construction.
The bead ensures sufficient sub-ventilation of the wooden beam.
The mounting holes are pre-punched, which facilitates installation. The hot-dip galvanising provides a high level of corrosion protection.
The bead ensures sufficient sub-ventilation of the wooden beam.
The mounting holes are pre-punched, which facilitates installation. The hot-dip galvanising provides a high level of corrosion protection.
- Width: 60 mm
- Height: 150 mm
- Plate thickness: 5 mm
- Mounting hole diameter: 10.5 mm
- Diameter of hole: 12.5 mm
- Elongated hole width: 6.25 mm
- Elongated hole length: 25.5 mm
- Material: Steel
- Surface: Hot dip galvanized
