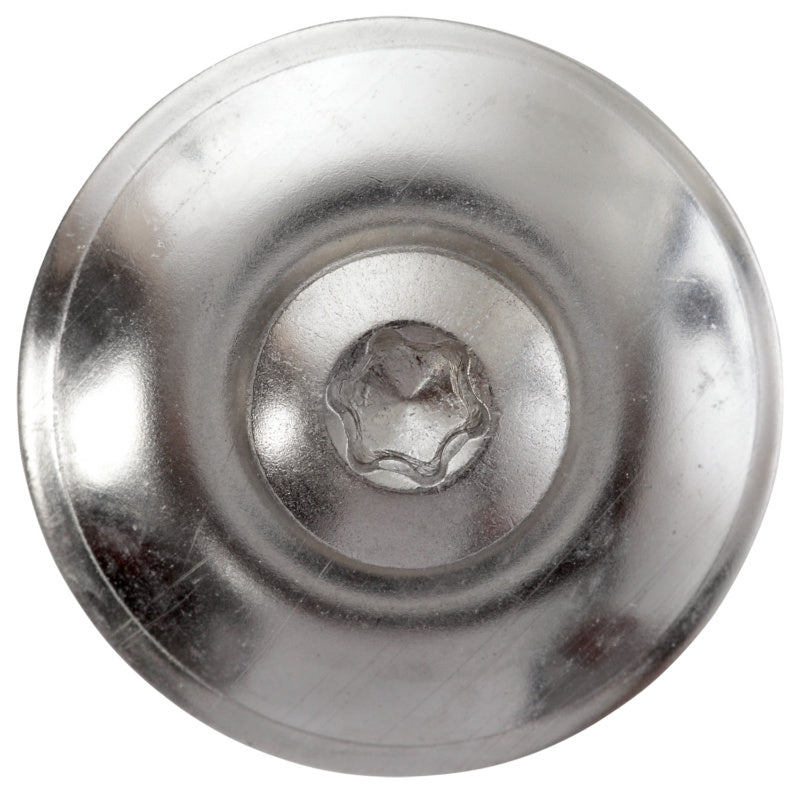

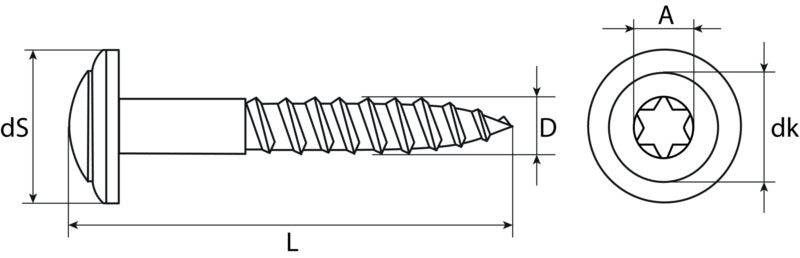

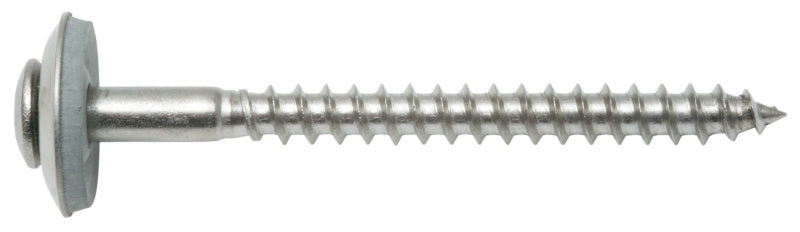

Self-tapping screw with sealing washer, A2 st/stl
Self-tapping screw with sealing washer, A2 st/stl
Self-tapping screw with sealing washer, A2 st/stl

swg-schraubenwerk

Self-tapping screw with sealing washer, A2 st/stl

  • Material: Stainless steel A2
  • Material of sealing washer: EPDM
  • Nominal diameter: 4.5 mm
  • Thread design: Partial thread
  • Head type: Raised countersunk head
  • Drive type: Internal hexalobular
  • Internal drive: TX20
  • Head diameter max.: 8.75 mm
  • Max. penetration depth: 1.8 mm
Go to product variants

Exclusively for business customers

  • Price display and ordering for customers after registration
  • Register now and access more than 50,000 products
Log in/Register
make contact
Call customer service at +49 7942 100-0
Variants
Description
Application
Technical data
Documents
The EDPM sealing washer is vulcanised on to prevent the ingress of moisture and thus protects the substructure underneath or behind the fixture.
  • Material: Stainless steel A2
  • Material of sealing washer: EPDM
  • Nominal diameter: 4.5 mm
  • Thread design: Partial thread
  • Head type: Raised countersunk head
  • Drive type: Internal hexalobular
  • Internal drive: TX20
  • Head diameter max.: 8.75 mm
  • Max. penetration depth: 1.8 mm
