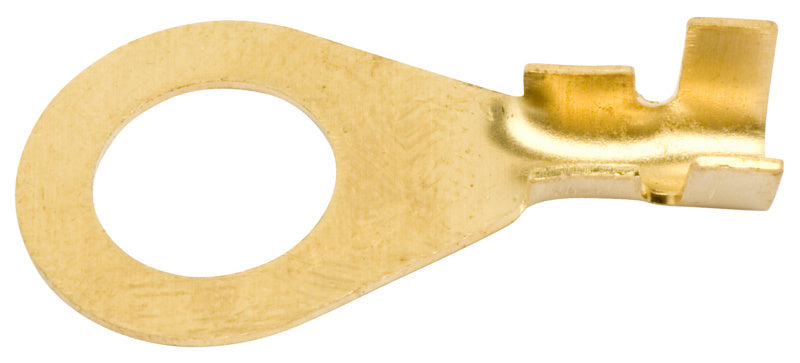

Ring connector, uninsulated
Ring connector, uninsulated

swg-schraubenwerk

Ring connector, uninsulated

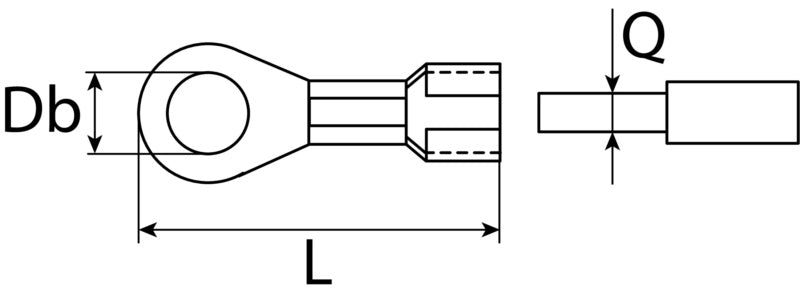

  • Min./max. cable cross section: 1.50-2.50 mm²
  • Through-hole diameter: 8.2 mm
  • Length: 26 mm
  • Diameter of hole: 8.3 mm
  • Thickness: 0.5 mm
  • Plug-connector diameter: 6.1 mm
  • Internal diameter: 3.3 mm
  • Sleeve width: 6.1 mm
  • Sleeve width internal: 5 mm
  • Sleeve height: 5 mm
  • Suitable for Screw diameter (metric): 8 mm
Go to product variants

Exclusively for business customers

  • Price display and ordering for customers after registration
  • Register now and access more than 50,000 products
Log in/Register
make contact
Call customer service at +49 7942 100-0
Variants
Description
Technical data
Documents
Preformed
  • Min./max. cable cross section: 1.50-2.50 mm²
  • Through-hole diameter: 8.2 mm
  • Length: 26 mm
  • Diameter of hole: 8.3 mm
  • Thickness: 0.5 mm
  • Plug-connector diameter: 6.1 mm
  • Internal diameter: 3.3 mm
  • Sleeve width: 6.1 mm
  • Sleeve width internal: 5 mm
  • Sleeve height: 5 mm
  • Suitable for Screw diameter (metric): 8 mm
