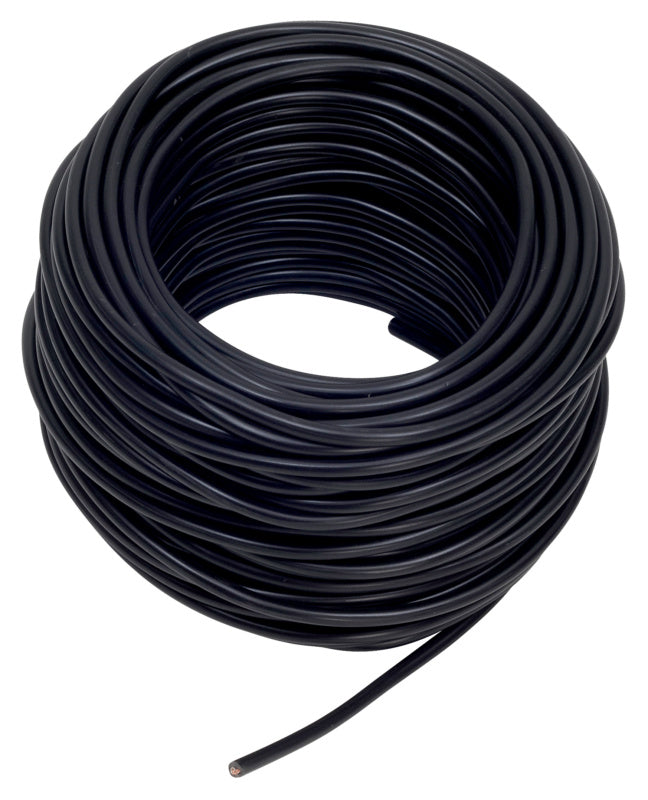

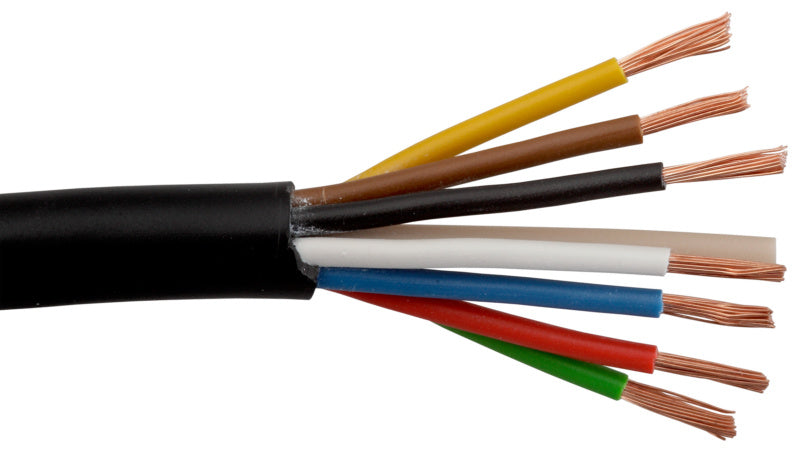

PVC hose line
- Colour: Black
- Max. wire diameter: 2.4 mm
- Conductor construction: Symmetrical
- Wire identification: FLYY
- Min./max. temperature resistance: -40 to 85 °C
- Cable cross section: 1.5 mm²
- Shore A hardness: 90
- Outer diameter: 2.3 mm
- Number of wires: 28 pieces
Exclusively for business customers
- Price display and ordering for customers after registration
- Register now and access more than 50,000 products
Variants
Description
Technical data
Documents
FLYY
DIN/ISO 6722
Double PVC insulation (core insulation and black sheath)
Fine wire copper conductors
Multi-core connecting cable (e.g. for trailer couplings)
2 x 1.5 mm² = black/white
3 x 1.5 mm² = black/white/brown
4 x 1.5 mm² = yellow/black/white/brown
5 x 1.5 mm² = yellow/black/white/brown/green
7 x 1.5 mm² = yellow/black/red/blue/green/white/brown
13 x 1.5 mm² = 2x yellow/2x red/2x blue/black/green/white/grey/brown/violet/orange
DIN/ISO 6722
Double PVC insulation (core insulation and black sheath)
Fine wire copper conductors
Multi-core connecting cable (e.g. for trailer couplings)
2 x 1.5 mm² = black/white
3 x 1.5 mm² = black/white/brown
4 x 1.5 mm² = yellow/black/white/brown
5 x 1.5 mm² = yellow/black/white/brown/green
7 x 1.5 mm² = yellow/black/red/blue/green/white/brown
13 x 1.5 mm² = 2x yellow/2x red/2x blue/black/green/white/grey/brown/violet/orange
- Colour: Black
- Max. wire diameter: 2.4 mm
- Conductor construction: Symmetrical
- Wire identification: FLYY
- Min./max. temperature resistance: -40 to 85 °C
- Cable cross section: 1.5 mm²
- Shore A hardness: 90
- Outer diameter: 2.3 mm
- Number of wires: 28 pieces
