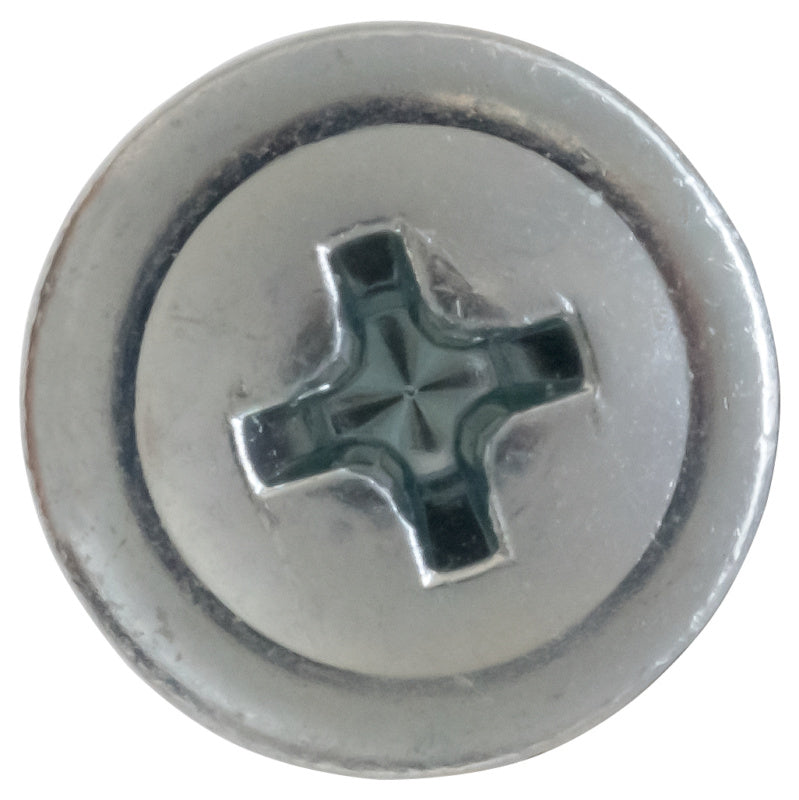

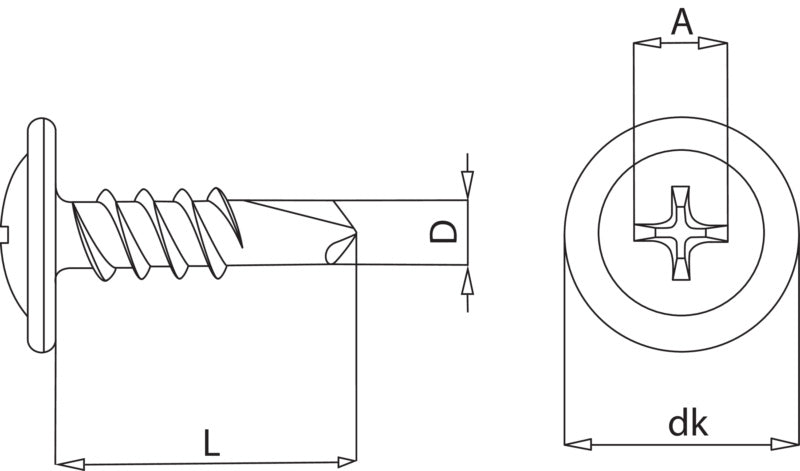

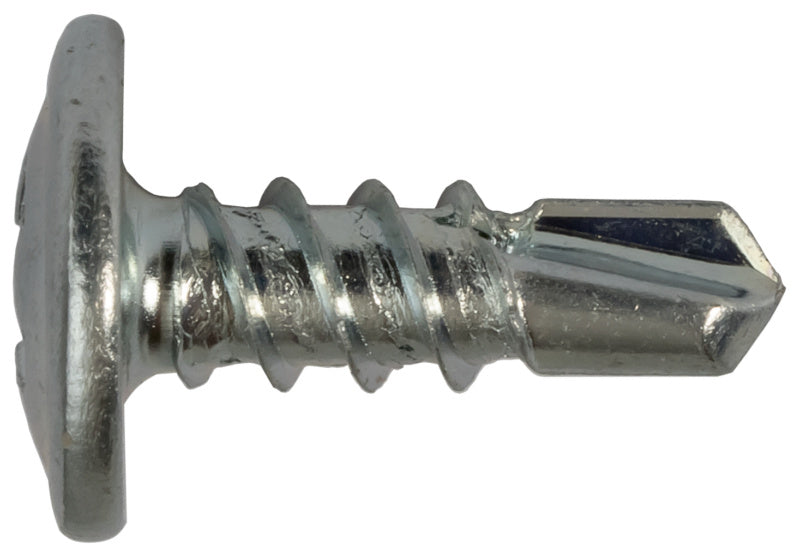

Dry wall screw, profile connection screw, flat head, drill tip
Dry wall screw, profile connection screw, flat head, drill tip
Dry wall screw, profile connection screw, flat head, drill tip

swg-schraubenwerk

Dry wall screw, profile connection screw, flat head, drill tip

  • Material: Steel
  • Surface: Zinc plated
  • Diameter: 4.2 mm
  • Length: 13 mm
  • Drive type: H
  • Internal drive: H2
  • Thread form: Fine pitch thread
  • Head diameter max.: 10.2 mm
  • Head height max.: 2.5 mm
  • Corrosion protection period: 24 h
  • Type:
  • Max. breaking torque: 4.2 Nm
  • EN standard: 14566
Go to product variants

Exclusively for business customers

  • Price display and ordering for customers after registration
  • Register now and access more than 50,000 products
Log in/Register
make contact
Call customer service at +49 7942 100-0
Variants
Description
Application
Technical data
Documents
Drywall screw in accordance with EN14566:2008+A1:2009/Class 24/WMD

The profile connection screw with washer head and drill tip is ideal for its intended application of tightly connecting two metal profiles:

Large washer head


  • Generates a high contact pressure on the metal profiles and pulls them together tightly.

Special thread geometry


  • The double self-tapping screw thread enables secure screw connection and strong power transmission to the connected components.

Drill tip


  • With no pre-drilling and quick biting it quickly and easily penetrates into the metal profile (U-profile, C-stand and other metal profiles for substructures up to 2 mm thickness per component).

Surface


  • The screw is made from steel and zinc-plated, blue passivated.
  • Material: Steel
  • Surface: Zinc plated
  • Diameter: 4.2 mm
  • Length: 13 mm
  • Drive type: H
  • Internal drive: H2
  • Thread form: Fine pitch thread
  • Head diameter max.: 10.2 mm
  • Head height max.: 2.5 mm
  • Corrosion protection period: 24 h
  • Type:
  • Max. breaking torque: 4.2 Nm
  • EN standard: 14566
