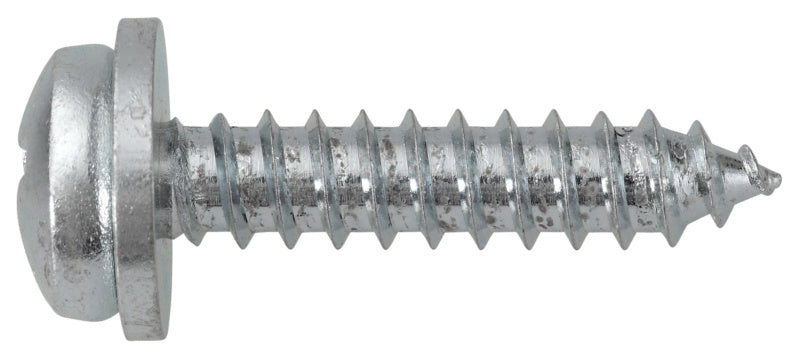

Number plate screw, zinc-plated
Number plate screw, zinc-plated
Number plate screw, zinc-plated

swg-schraubenwerk

Number plate screw, zinc-plated

  • Material: Steel
  • Surface: Zinc plated
  • Nominal diameter: 5.5 mm
  • Head type: Cheese head
  • Drive type: Crosshead
  • Internal drive: H3

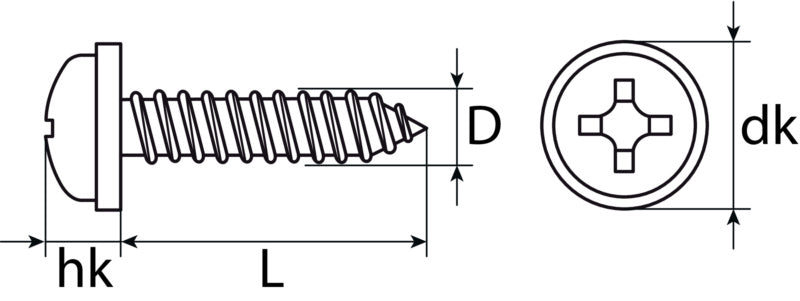

  • Max. thread diameter (d thr): 5.46 mm
  • Head diameter max.: 10.8 mm
  • Head height max.: 3.95 mm
  • Washer thickness: 1.6 mm
  • Washer diameter: 12.5 mm
  • Pitch: 1.8 mm
  • Max. material thickness: 4.17 mm
Go to product variants

Exclusively for business customers

  • Price display and ordering for customers after registration
  • Register now and access more than 50,000 products
Log in/Register
make contact
Call customer service at +49 7942 100-0
Variants
Description
Application
Technical data
Documents
Pan head with pressed-on washer

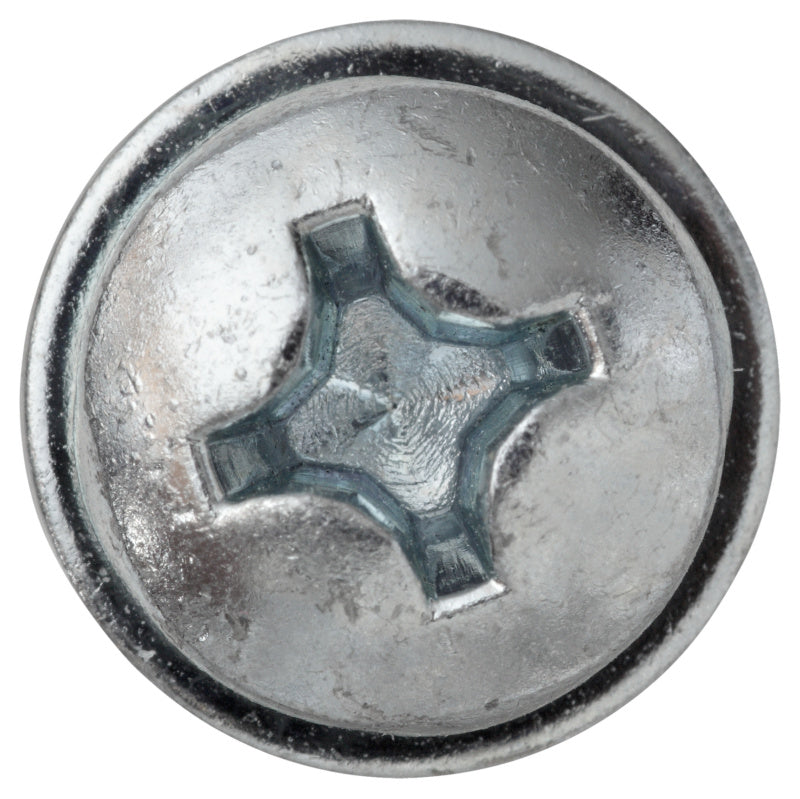

PH drive (cross-head)
Self-tapping screw thread
  • Material: Steel
  • Surface: Zinc plated
  • Nominal diameter: 5.5 mm
  • Head type: Cheese head
  • Drive type: Crosshead
  • Internal drive: H3
  • Max. thread diameter (d thr): 5.46 mm
  • Head diameter max.: 10.8 mm
  • Head height max.: 3.95 mm
  • Washer thickness: 1.6 mm
  • Washer diameter: 12.5 mm
  • Pitch: 1.8 mm
  • Max. material thickness: 4.17 mm
