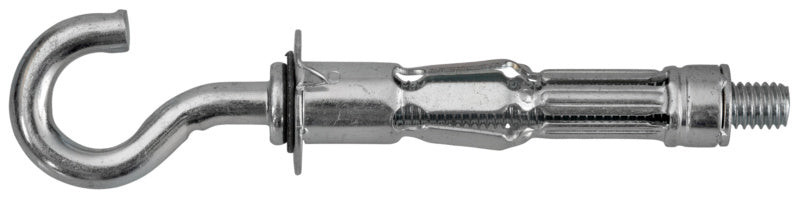

Metal cavity anchor with hook, bent
Metal cavity anchor with hook, bent

swg-schraubenwerk

Metal cavity anchor with hook, bent

  • Material: Steel
  • Surface: Zinc plated
  • Nominal length: 68 mm
  • Screw length: 92 mm

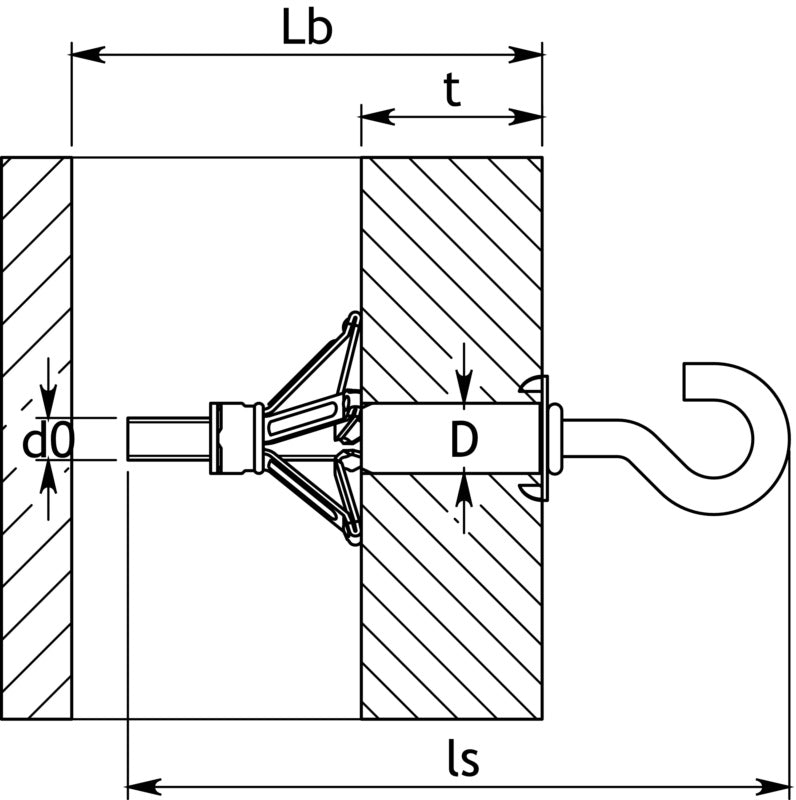

  • Drill hole diameter: 12 mm
  • Drill hole depth: 65 mm
  • Drill hole depth (t) - condition: Anchor length + 5 mm
  • Anchor diameter: 10 mm
  • Thread type x Thread diameter (metric thread): M6
  • Thread diameter (metric thread): 6 mm
  • Sleeve length: 52 mm
  • Min. grip range: 5.0 mm
  • Max. grip range: 18.0 mm
Go to product variants

Exclusively for business customers

  • Price display and ordering for customers after registration
  • Register now and access more than 50,000 products
Log in/Register
make contact
Call customer service at +49 7942 100-0
Variants
Description
Application
Technical data
Documents
  • Adapts to changing requirements as the screw can be removed and screwed in again several times

  • Expanding support elements with large contact surface

  • Solid hold ensures secure fixing
  • Material: Steel
  • Surface: Zinc plated
  • Nominal length: 68 mm
  • Screw length: 92 mm
  • Drill hole diameter: 12 mm
  • Drill hole depth: 65 mm
  • Drill hole depth (t) - condition: Anchor length + 5 mm
  • Anchor diameter: 10 mm
  • Thread type x Thread diameter (metric thread): M6
  • Thread diameter (metric thread): 6 mm
  • Sleeve length: 52 mm
  • Min. grip range: 5.0 mm
  • Max. grip range: 18.0 mm
