Adjusting screw wood/wood without bit

  • Material: Steel
  • Surface: Zinc plated
  • Nominal diameter: 6 mm
  • Head type: Countersunk head

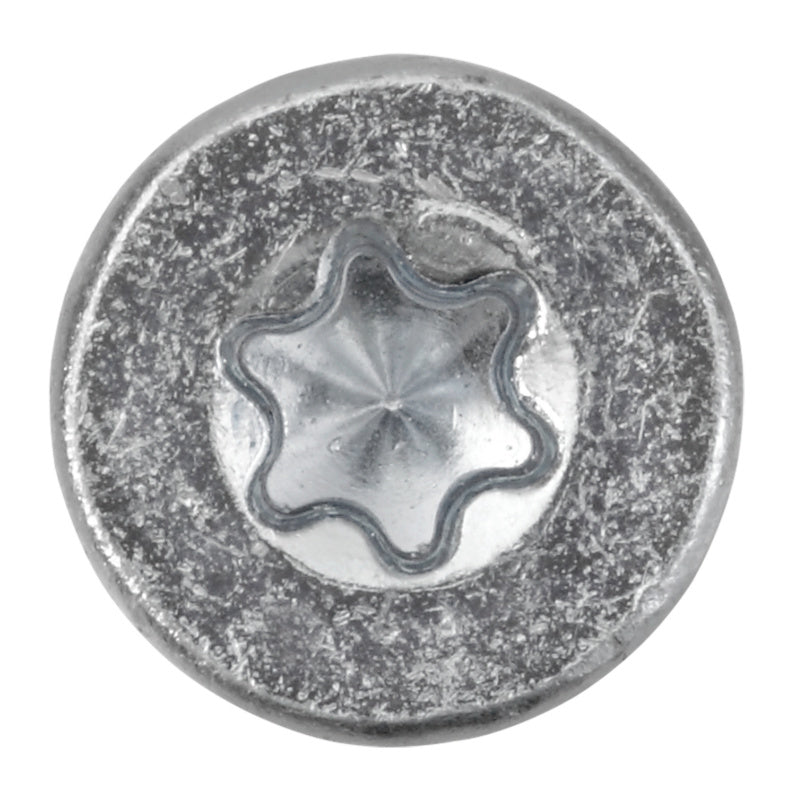

  • Drive type: Internal hexalobular
  • Internal drive: TX25
  • Max. thread diameter (d thr): 6.1 mm
  • Head diameter max.: 10 mm
  • Pitch: 2.86 mm
  • Max. length of underhead thread with head: 19.5 mm
  • Max. penetration depth: 2.42 mm
  • Max. breaking torque: 10.78 Nm
  • Max. diameter: 6.1 mm
Go to product variants

Exclusively for business customers

  • Price display and ordering for customers after registration
  • Register now and access more than 50,000 products
Log in/Register
make contact
Call customer service at +49 7942 100-0
Variants
Description
Application
Technical data
Documents
Wood/wood
Milling tip
  • Material: Steel
  • Surface: Zinc plated
  • Nominal diameter: 6 mm
  • Head type: Countersunk head
  • Drive type: Internal hexalobular
  • Internal drive: TX25
  • Max. thread diameter (d thr): 6.1 mm
  • Head diameter max.: 10 mm
  • Pitch: 2.86 mm
  • Max. length of underhead thread with head: 19.5 mm
  • Max. penetration depth: 2.42 mm
  • Max. breaking torque: 10.78 Nm
  • Max. diameter: 6.1 mm
