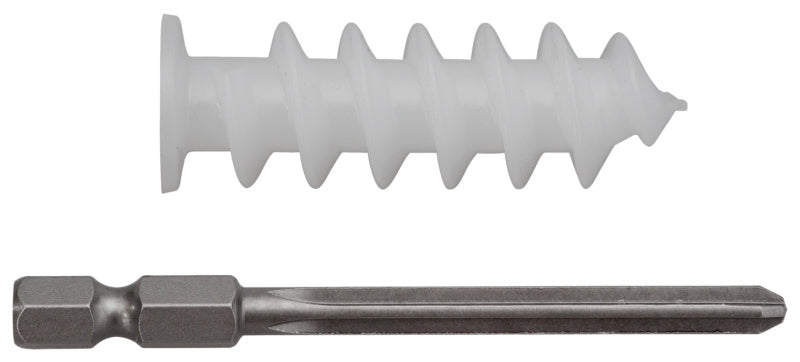

Insulation anchor, polyethylene
Insulation anchor, polyethylene

swg-schraubenwerk

Insulation anchor, polyethylene

  • Material: PE - Polyethylene
  • Nominal diameter: 18 mm

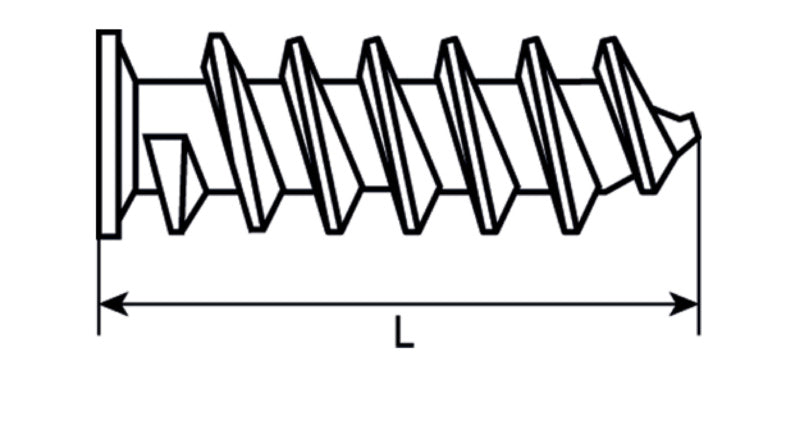

  • Nominal length: 50 mm
  • Thread type x Thread diameter (metric thread): M4
  • Thread diameter (metric thread): 4 mm
  • Head diameter: 17 mm
  • Minimum component thickness: 50 mm
  • Min. edge clearance (c min): 75 mm
  • Max. screw diameter: 5 mm
  • Embedding depth: 50 mm
  • Min. temperature resistance: -20 °C
  • Max. temperature resistance: 100 °C
  • Standard anchoring depth: 50 mm
  • Drill hole diameter: 18 mm
  • Min. centre-to-centre distance (s min): 150 mm
  • Max. screw-in depth (d a): 40 mm
  • Recommended load in hard foam PUR30 Frec.: 0.12 kN
  • Recommended load in Polystyrene min. PS20 Frec.: 0.04 kN
Go to product variants

Exclusively for business customers

  • Price display and ordering for customers after registration
  • Register now and access more than 50,000 products
Log in/Register
make contact
Call customer service at +49 7942 100-0
Variants
Description
Application
Technical data
Documents
  • Mechanical interlock mounting

  • No thermal bridge

  • Resistant to rotting, weathering and ageing
  • Material: PE - Polyethylene
  • Nominal diameter: 18 mm
  • Nominal length: 50 mm
  • Thread type x Thread diameter (metric thread): M4
  • Thread diameter (metric thread): 4 mm
  • Head diameter: 17 mm
  • Minimum component thickness: 50 mm
  • Min. edge clearance (c min): 75 mm
  • Max. screw diameter: 5 mm
  • Embedding depth: 50 mm
  • Min. temperature resistance: -20 °C
  • Max. temperature resistance: 100 °C
  • Standard anchoring depth: 50 mm
  • Drill hole diameter: 18 mm
  • Min. centre-to-centre distance (s min): 150 mm
  • Max. screw-in depth (d a): 40 mm
  • Recommended load in hard foam PUR30 Frec.: 0.12 kN
  • Recommended load in Polystyrene min. PS20 Frec.: 0.04 kN
