Wood construction with cheese head

  • Material: Steel
  • Surface: Zinc plated yellow
  • Nominal diameter: 8 mm
  • Thread design: Full thread
  • Head type: Socket head
  • Drive type: Internal hexalobular
  • Internal drive: TX40

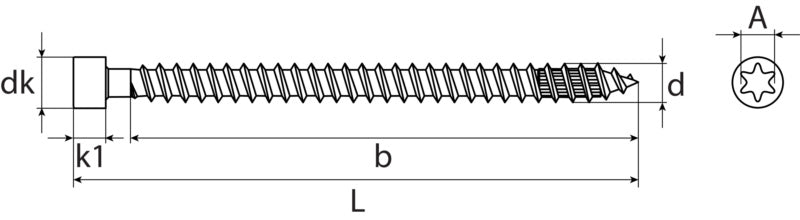

  • Head diameter max.: 10.2 mm
  • Head height max.: 7.5 mm
Go to product variants

Exclusively for business customers

  • Price display and ordering for customers after registration
  • Register now and access more than 50,000 products
Log in/Register
make contact
Call customer service at +49 7942 100-0
Variants
Description
Application
Technical data
Documents

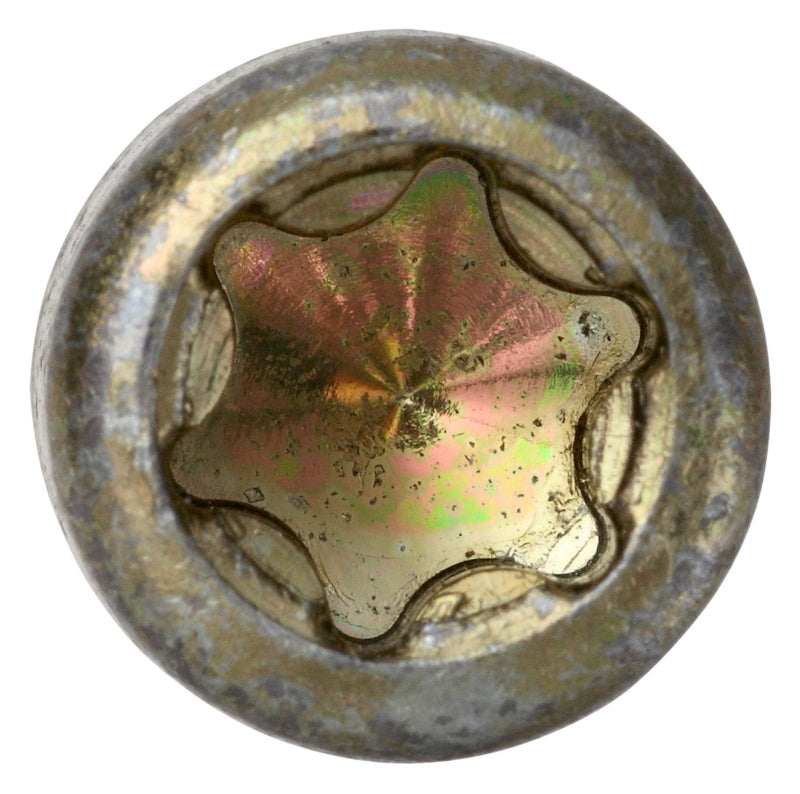

TX drive


  • Six force application areas (line contact) for strong power transmission

  • No driving-out effect (cylindrical shape eliminates cam-out effect) for a long bit service life

  • Mechanical processing possible

  • Good torque transmission

Cylinder head


  • Reduced splitting effect

  • Can be countersunk deep into wood for optimal user safety

Full thread


  • High load-bearing capacity of the screw connection

  • Power is transmitted over the entire screw length for optimal installation

High-quality hardened steel


  • High breaking torque

  • Optimal installation quality

  • Cr Vi-free surface

Anti-friction coating


  • Easy to screw in with low screwing resistance, reducing the amount of energy and force required
  • Material: Steel
  • Surface: Zinc plated yellow
  • Nominal diameter: 8 mm
  • Thread design: Full thread
  • Head type: Socket head
  • Drive type: Internal hexalobular
  • Internal drive: TX40
  • Head diameter max.: 10.2 mm
  • Head height max.: 7.5 mm
