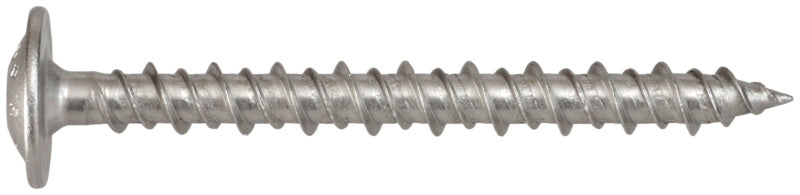

Timber screws TX washer head, full thread, A2 stainless steel

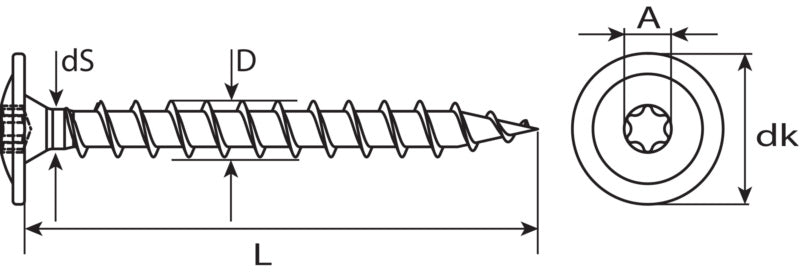

- Nominal diameter: 8 mm
- Nominal length: 80 mm
- Head diameter max.: 21 mm
- Internal drive: TX40
- Drive type: Internal hexalobular
- Material: Stainless steel A2
- Head type: Disc head
- Thread design: Full thread
- Max. thread diameter (d thr): 8.2 mm
Exclusively for business customers
- Price display and ordering for customers after registration
- Register now and access more than 50,000 products
Variants
Description
Application
Technical data
Documents

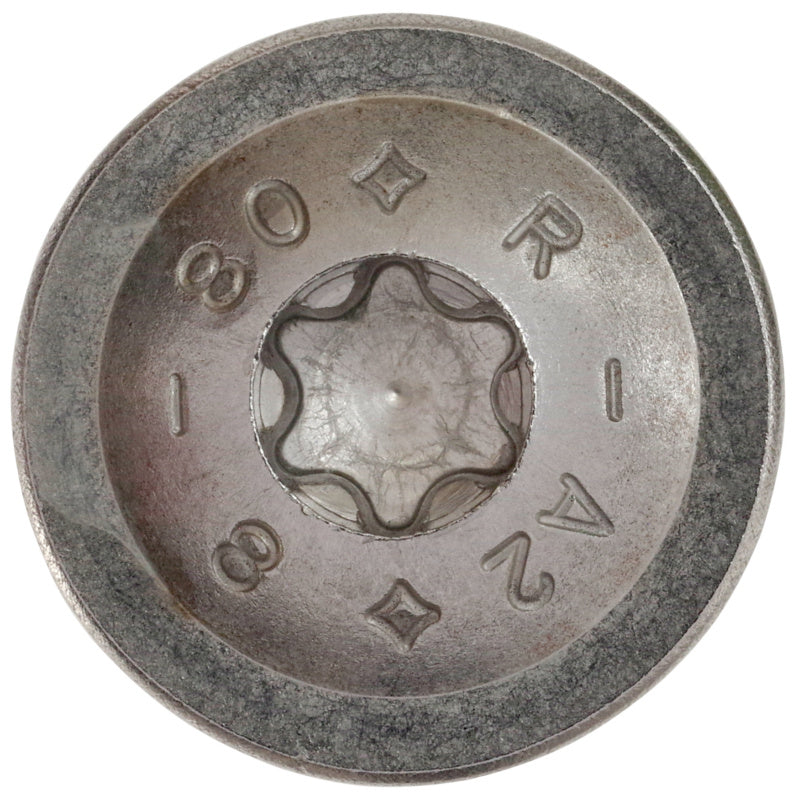

TX drive
- Strong power transmission via six force application areas (line contact)
- No driving-out effect (cylindrical shape eliminates cam-out effect) means long bit service life
- Mechanical processing possible
- Good torque transmission
Washer head
- Fewer screws required due to connections being more flush (even if wood is deformed)
- High tightening and head penetration values
- High degree of tension resistance
- Faster installation times
Under-head reinforcement
- Optimal tear-off resistance enhances safety for user
Full thread
- Optimal installations due to firm retention over the entire thread length
HiLo thread
- High thread pitch allows for rapid installation
- Special HiLo thread shape reduces screw-in resistance
Tip
- Thread moulding up to the tip enables screw to engage rapidly
- Nominal diameter: 8 mm
- Nominal length: 80 mm
- Head diameter max.: 21 mm
- Internal drive: TX40
- Drive type: Internal hexalobular
- Material: Stainless steel A2
- Head type: Disc head
- Thread design: Full thread
- Max. thread diameter (d thr): 8.2 mm
