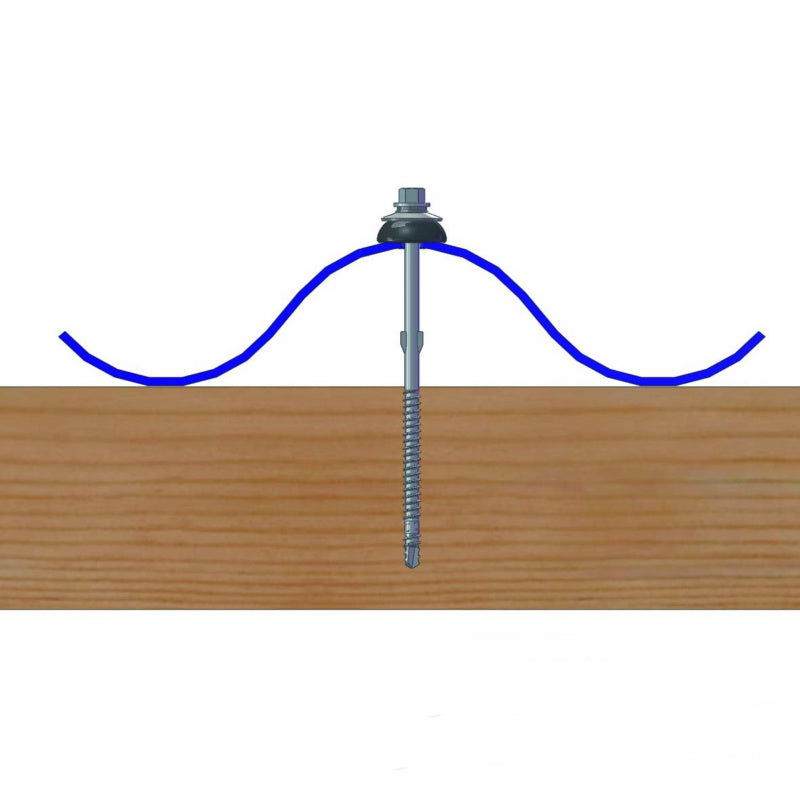

Fibre cement board screw

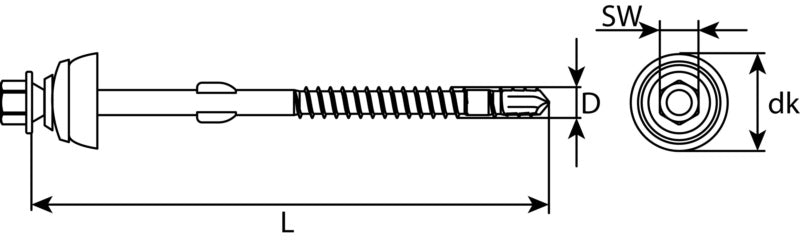

- Material: Stainless steel A2
- Surface: Plain
- Diameter: 6.5 mm
- Length: 130 mm
- Head type: Hexagon head
- Drive type: Hexagon
- Width across flats: 8 mm
- Thread length: 65 mm
- Shank diameter: 5.18 mm
- Head diameter max.: 12.7 mm
- Head height: 6.4 mm
- Washer diameter: 25 mm
- Core diameter: 4.65 mm
- Max. wing width: 8.2 mm
- External drive: WS8
Exclusively for business customers
- Price display and ordering for customers after registration
- Register now and access more than 50,000 products
Variants
Description
Application
Technical data
Documents
Hexagon drive
- Six force application areas (line contact) for strong power transmission
- No driving-out effect (cylindrical space eliminates cam-out effect)
- Can be mechanically driven to save time
- Good torque transmission

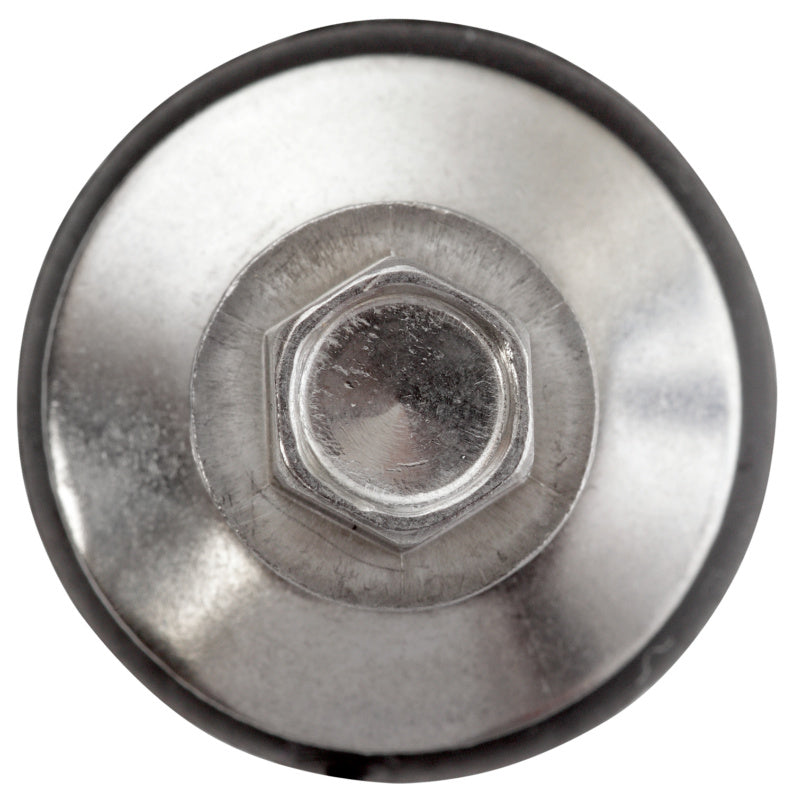

Stainless steel washer
- Professional installation through reliable sealing of the screw shank on the taper under the head
EPDM bell sealing pre-assembled
- Good, water-impermeable sealing of the hole ensures long service life of the construction
- Adapts precisely to the board shape
Wings
- Widens the drill hole in the fibre cement panels and thus prevents stress cracks
Drill tip
- Less time required as no pre-drilling necessary
- Insertion and drilling in one operation
- Material: Stainless steel A2
- Surface: Plain
- Diameter: 6.5 mm
- Length: 130 mm
- Head type: Hexagon head
- Drive type: Hexagon
- Width across flats: 8 mm
- Thread length: 65 mm
- Shank diameter: 5.18 mm
- Head diameter max.: 12.7 mm
- Head height: 6.4 mm
- Washer diameter: 25 mm
- Core diameter: 4.65 mm
- Max. wing width: 8.2 mm
- External drive: WS8
