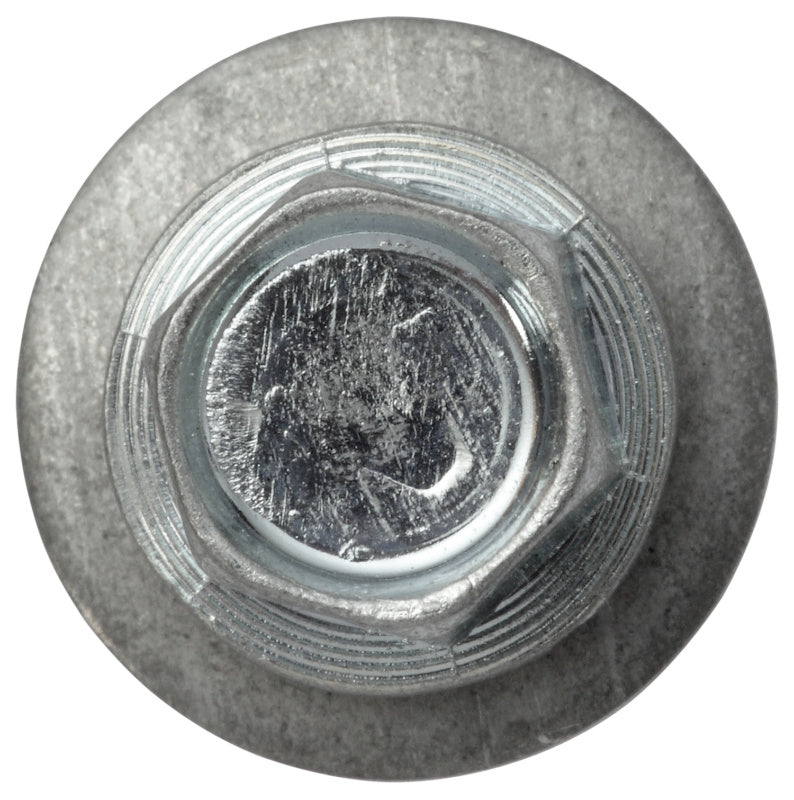

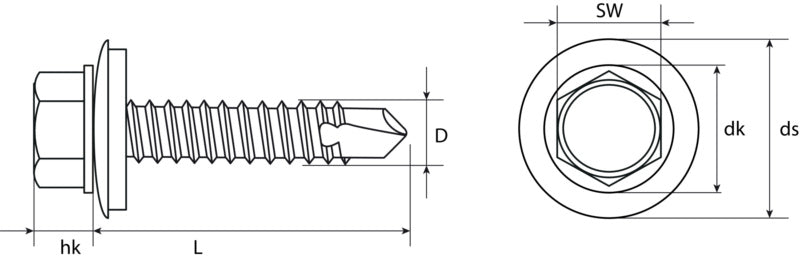

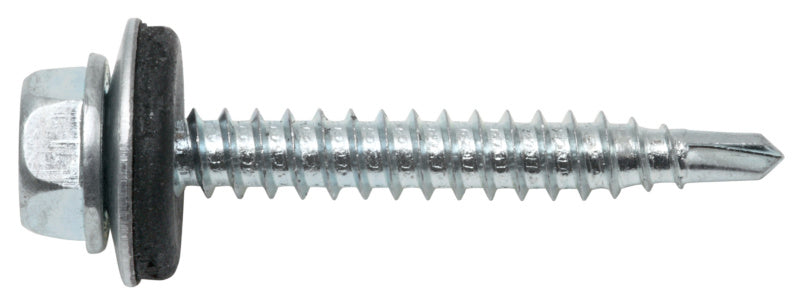

Hexagon dr. screw w/sealing washer, z/pl, coloured
- Material: Steel
- Surface: Zinc plated
- DIN: 7504
- Nominal diameter: 4.8 mm
- Washer diameter: 14 mm
- Thread design: Full thread
- Washer thickness: 0.8 mm
- Head type: Hexagon head
- Drive type: Hexagon
- Width across flats: 8 mm
- Head diameter: 10.5 mm
- Head height max.: 4.7 mm
- Material thickness of sealing material: 2.5 mm
- Form: K
- Diameter of undehead strengthening: 5 mm
- Max. drill tip length: 5 mm
- External drive: WS8
