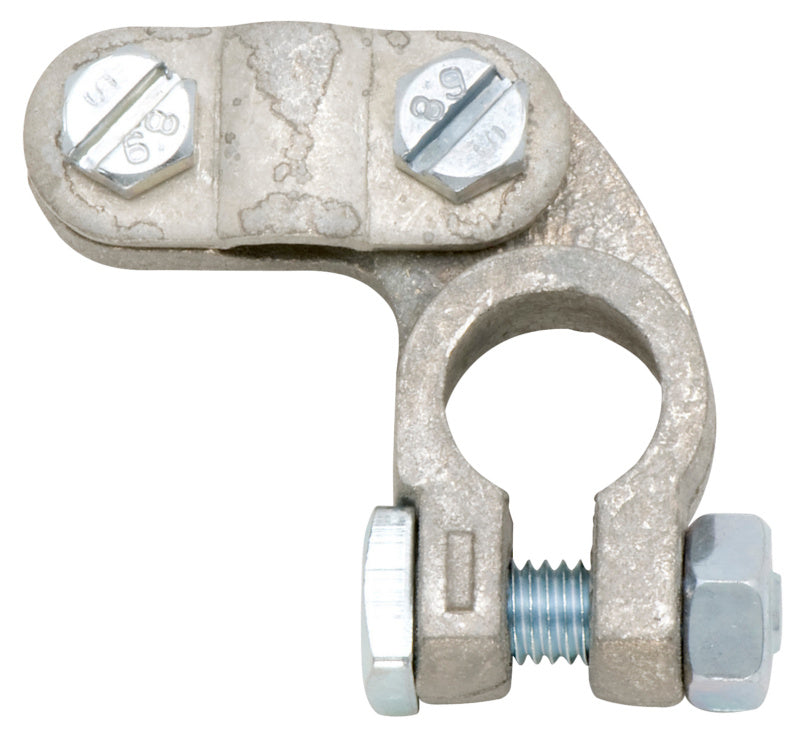

Battery terminal - form B up to 70 qmm
Battery terminal - form B up to 70 qmm

swg-schraubenwerk

Battery terminal - form B up to 70 qmm

  • Material: Brass
  • Surface: Tin plated
  • Electrical-pole diameter: 15.9 mm
  • Polarity type: Minus
  • Width across flats: 10 mm
  • Length of cable anchor: 20 mm
  • Cable cross section: 70 mm²
  • Thread diameter of nut: M8
  • Form: B
  • Diameter of pole clamping screw: 8 mm
  • Diameter of cable anchor: 6 mm
  • External drive: WS10
  • Design: Right
  • Drive type: Slot/hexagon
Go to product variants

Exclusively for business customers

  • Price display and ordering for customers after registration
  • Register now and access more than 50,000 products
Log in/Register
make contact
Call customer service at +49 7942 100-0
Variants
Technical data
Documents
  • Material: Brass
  • Surface: Tin plated
  • Electrical-pole diameter: 15.9 mm
  • Polarity type: Minus
  • Width across flats: 10 mm
  • Length of cable anchor: 20 mm
  • Cable cross section: 70 mm²
  • Thread diameter of nut: M8
  • Form: B
  • Diameter of pole clamping screw: 8 mm
  • Diameter of cable anchor: 6 mm
  • External drive: WS10
  • Design: Right
  • Drive type: Slot/hexagon
