Acoustic panel screws, phosphated
- Diameter: 3.9 mm
- Head diameter max.: 7.2 mm
- Internal drive: H2
- Type:
- Corrosion protection period: 48 h
- Material: Steel
- Surface: Phosphated
- Head type: Countersunk head
- Thread form: Hilo
- double start
- Min. thread diameter (d thr): 3.8 mm
- Drive type: H
- Width Package: 60.00
Exclusively for business customers
- Price display and ordering for customers after registration
- Register now and access more than 50,000 products
Variants
Description
Application
Technical data
Documents

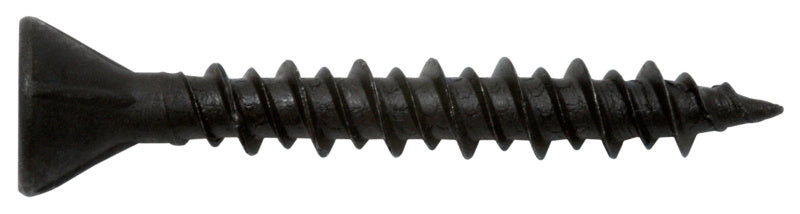

- The acoustic panel screw with HiLo thread is used in acoustic construction and dry walling:
Needle tip
- The needle tip allows the screw to be positioned exactly.
HiLo thread
- With the HiLo thread, it can also be screwed into particularly hard cement-bound fibreboards as well as wood substructures, lightweight profiles and metal frameworks up to 1.0 mm.
- Diameter: 3.9 mm
- Head diameter max.: 7.2 mm
- Internal drive: H2
- Type:
- Corrosion protection period: 48 h
- Material: Steel
- Surface: Phosphated
- Head type: Countersunk head
- Thread form: Hilo
- Min. thread diameter (d thr): 3.8 mm
- Drive type: H
- Width Package: 60.00
